Speedresser | Topdresser

Speedresser | Topdresser

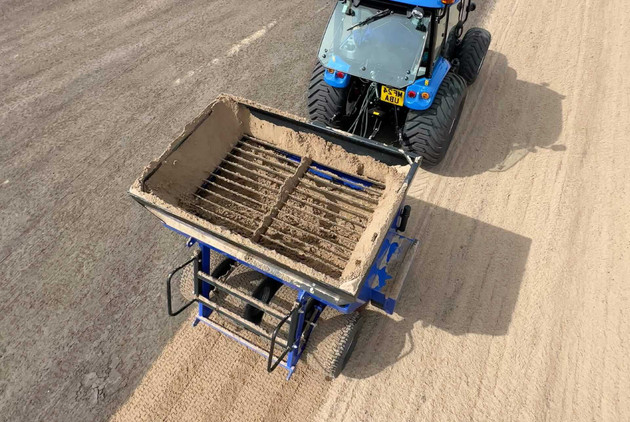

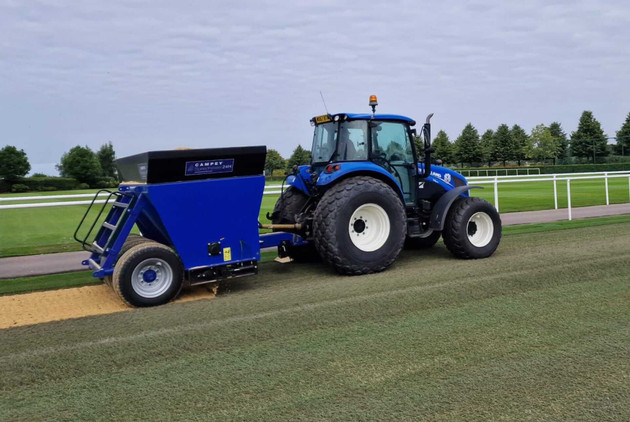

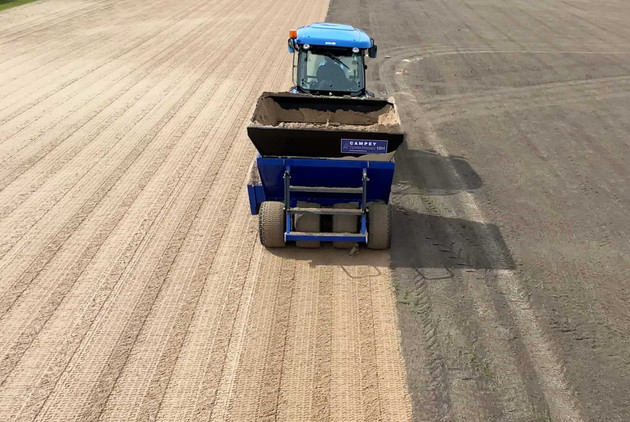

The Speedresser range are heavy-duty bulk drop-spreaders designed to handle a wide range of topdressing materials on sports turf. Traditional topdressing can be slow and labour-intensive; Speedresser units use large-capacity hoppers, flotation tyres and hydraulically driven twin rollers to deliver consistent dressing depths in a single pass while minimising turf damage and compaction.

Key Features and Specifications

Common features

• Application: Bulk drop-spreader for sand and soil-based topdressing materials.
• Typical use: Golf courses, sports fields and other intensively managed turf areas.
• Spreading depth: Up to approximately 2 mm to 75 mm in a single pass (both models).
• Drive: Agitator and twin rollers driven from the tractor (hydraulically / PTO as specified per model).
• Tyres: Four flotation tyres on a pivoting axle to minimise turf damage and surface compaction.
• Operating speed: Up to 12 mph (18 km/h).

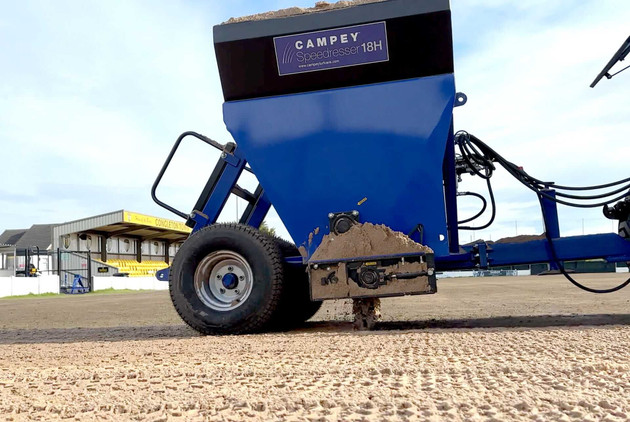

Speedresser 18H

• Spreading width: 1.80 m.
• Overall width: 2.10 m.
• Body length: 3.00 m (2.00 m with drawbar removed).
• Hopper capacity: 2.25 m³ (3.25 m³ with hopper extension).
• Loading height: 1.40 m (1.75 m with hopper extension) (69").
• Gross weight: 4,000 kg (5,500 kg with hopper extension).
• Weight (unladen): 960 kg (1,050 kg with hopper extension).
• Tractor requirement: 50 hp minimum plus spool valve, pick-up hitch/drawbar.
• Tyres: 4 × Ultra Trac 26.5 × 14 × 12.

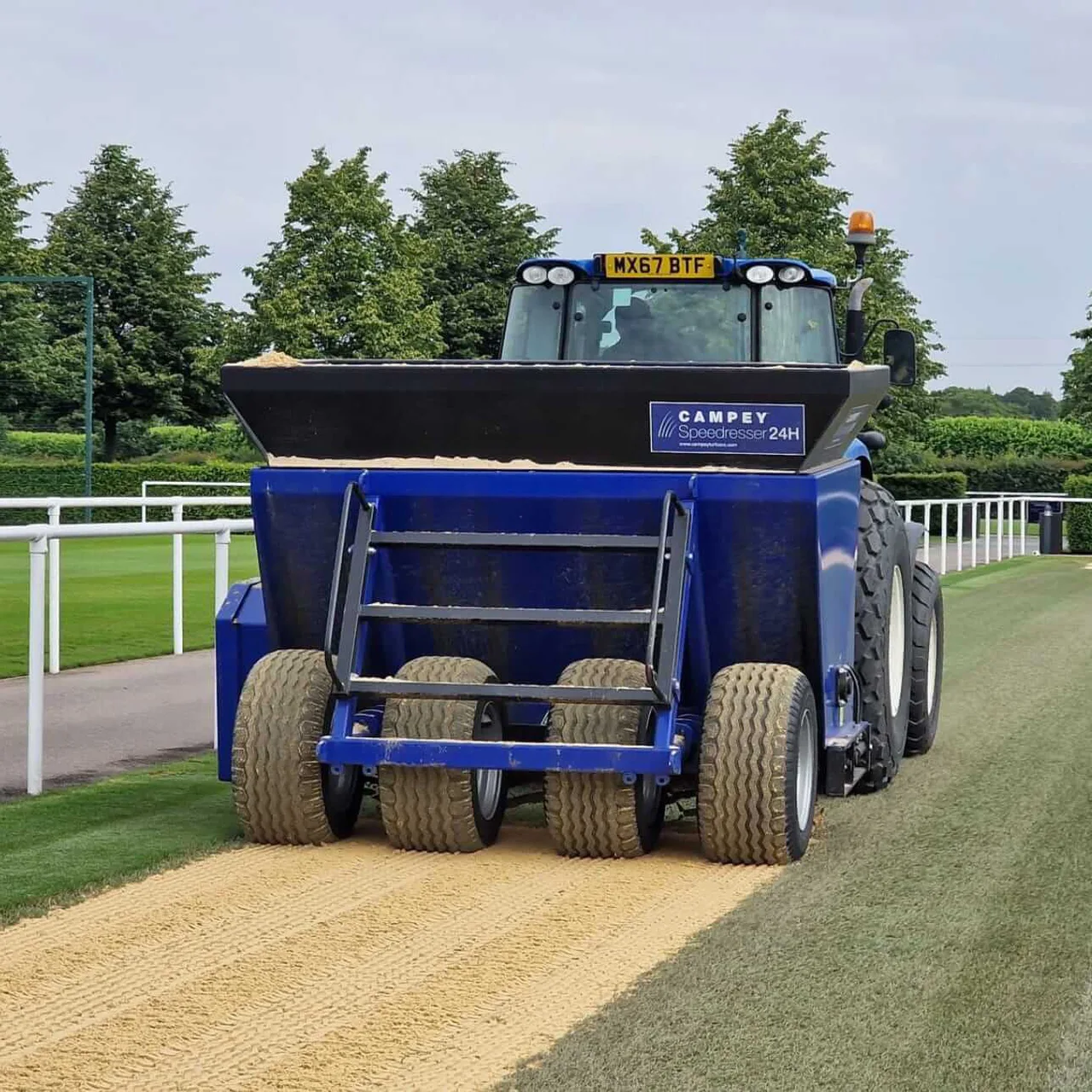

Speedresser 24H

• Spreading width: 2.40 m.
• Overall width: 2.65 m.
• Body length: 2.30 m.
• Hopper capacity: 5.75 m³.
• Loading height: 2.00 m.
• Gross weight: 9,250 kg.
• Weight (unladen): 2,250 kg.
• Tractor requirement: 75 hp minimum with pick-up hitch or clevis drawbar and two spool valves.
• Tyres: 4 × flotation tyres, 15.5 × 14 ply.
• Spreading rate adjustment: Twin rollers hydraulically adjustable against a pre-set stop to alter application rates.
• Options: Extra agitator recommended for fibre sand.

Application and Usage Instructions

• Confirm tractor compatibility with the relevant Speedresser model (power, hydraulic spool valves, hitch type).
• Load the hopper with the chosen topdressing material within the rated capacity; avoid overloading.
• Set the desired dressing depth (within the 2 mm to 75 mm range) and, for the Speedresser 24H, adjust the twin rollers hydraulically to achieve the target application rate.
• Operate at an appropriate forward speed (up to 18 km/h) to ensure even material distribution and prevent over-application at headlands.
• Use the flotation tyres and pivoting axle to work on suitable ground conditions, minimising compaction and surface marking.
• After use, empty any remaining material, wash down the hopper, conveyors and rollers, and inspect moving parts for wear or build-up.

High-capacity topdressing for professional turf

Speedresser bulk drop-spreaders combine high hopper capacities, flotation running gear and adjustable spreading mechanisms to deliver accurate, efficient topdressing on golf and sports turf. Refer to the individual Speedresser 18H and 24H datasheets for full technical details and to match the correct model to your tractor and site requirements.
